Concorde Pro S (Basic Model)

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

This reproduces wide rage of frequency at a low power output. It delivers a flatter sound when the power output is suppressed depend on the sound system and type of music.
Output power: 5mV / Channel separation: 23dB @ 1k Hz / Frequency range: 20Hz – 18,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 4g / Weight: 18.5g

Concorde Pro (Simple but delivers dynamic Sound)

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

This cartridge equipped with a round stylus reproduces wide range of frequency in a flatter but rich sound quality even at a low power output.
Output power: 5mV / Channel separation: 23dB @ 1k Hz / Frequency range: 20Hz – 18,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 4g / Weight: 18.5g

Concorde DJ S
The Ortofon DJ series has been known to many as the “jack of all trades”, with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied. The Ortofon DJ series of cartridges are great for any style of music, and has been a favored choice of DJs around the world.

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

Concorde Electro

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

Emphasis on the low middle frequency with powerful sound
Emphasis on low middle range sound that is essential in dance music. This delivers razor sharp clean cut sound with bouncing effect.
Output power: 5mV / Channel separation: 25dB @ 1k Hz / Frequency range: 20Hz – 20,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 4g / Weight: 18.5g

Ortofon Concorde Scratch

For DJs that require increased tracking ability, the Scratch is up to the task. Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces.

With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

TECHNICAL DATA

* Output voltage at 1000 Hz: 5cm/sec. ; 7 mV
* Channel balance at 1 kHz: 1,5 dB
* Channel separation at 1 kHz: 25 dB
* Channel separation at 15 kHz: 15 dB
* Frequency range at – 3dB: 20-20.000 Hz
* Frequency response: 20-15.000 Hz + 3 / – 2 dB
* FIM distortion at recommended tracking force, DIN 45.542: < 1 %
* Tracking ability at 315Hz at recommended tracking force: 80 µm
* Compliance, dynamic, lateral: 6 µm / mN
* Stylus type: Spherical
* Stylus tip radius: R 18 µm
* Equivalent stylus tip mass: 0,6 mg
* Tracking force range: 3,0-5,0 g (30-50 mN)
* Tracking force, recommended: 4,0 g (40 mN)
* Tracking angle: 20°
* Internal impedance, DC resistance: 750 Ohm
* Internal inductance: 450 mH
* Recommended load resistance: 47 kOhm
* Recommended load capacitance: 200-600 pF
* Cartridge colour, body/stylus: Neon red / Neon red
* Cartridge weight: 18,5 g
* Replacement stylus unit: Scratch

Concorde Qbert

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

Development Supervised by DJ Q-Bert for the Power and Drability With the cooperation of the king of the Scratch DJ, Qbert, Ortofon A/S of Denmark succeeded in the development of the cartridges that can jump the scratch and back-cueing. It has the greatest power output, “the frightening 11mV” among DJ and MM cartridge series. Compared with Line it surely delivers the low Phono output signals. “The frightening output” puts out the superpower sound.
Output power: 11mV / Channel separation: 22dB @ 1k Hz / Frequency range: 20Hz – 20,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 3g / Weight: 18.5g

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Stylus

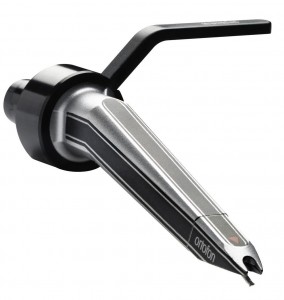

The brand new Ortofon-Serato S-120 sees two of the world’s finest manufacturers of DJ technology unite for the first time to create a pick-up cartridge of unprecedented specification. The S-120 embodies the combination of experience and ‘accuracy in sound’ that Ortofon are famous for, with the forward-thinking and famously stable technology of Serato’s Digital Vinyl System, Scratch Live.

In the ever-present age of DVS, no manufacturer has yet looked to optimise the first ‘link in the chain’ of pick-up cartridge technology in any dramatically new ways. However, the Ortofon-Serato project has set to change that with technology that, even outside of DVS usage, has created one of the most impressively spec’d DJ cartridges on the market.

The revolutionary, patented design boasts a number of technological breakthroughs, which the whole spectrum of vinyl-based DJs can benefit from; most notably of which is the development of an all-new asymmetric suspension technology. The development of this technology has allowed for an amazing amount of vertical rigidity – translating as less vinyl-skip – while at the same time increasing the horizontal tracking ability to levels never before accomplished – allowing for higher levels of musical detail and anti-skate. This latter success is manifest in the form of a massive 120µm (micro-metres) tracking ability, whereas all before it have traditionally been around 80 µm. Now DJs can scratch, rewind, cue and track with unrivalled accuracy.

Another breakthrough includes an increased capacity for reduced vinyl wear. The exceptional tracking ability of the S-120 allows for even the loudest record-pressings to be played at a bare minimum of tracking force (down to 1.5 grams), keeping record wear as limited as possible. This makes the cartridge highly adept at playing traditional vinyl for both DJing and listening purposes. Also because of the asymmetric technology, there is almost no need for an extended set-up and calibration process. The S-120’s performance is unrestricted by excess tracking force, greatly reducing the need to adjust it during a live gig.

Finally, the Ortofon-Serato S-120 is the ideal cartridge for playing back timecoded vinyl. The output voltage is at a high 10.0 mV (mili-volts), allowing for increased timecode performance at a high signal-to-noise ratio, especially when used with the SL1 and SL3 audio interfaces.

The Ortofon-Serato S-120 is truly set to be one of the finest examples of DJ Technology to have come out of NAMM 2010. The design revolutionises and modernises pick-up cartridge technology in line with the ever-digitising world of vinyl-based DJing.

The cartridge will be available in both Concorde and OM forms, with the OM version also being supplied with a custom-designed Serato headshell. As with all Ortofon models, there will also be stylus replacements available. The cartridge is due for UK release in February.

Below is all the vital statistics for the Ortofon-Serato S-120 cartridge, all of which is also available at the product specific website, http://s120ontrack.com/, where visitors can also watch an incredible performance video by the 2008 DMC Champion, DJ Fly, and be entered in a competition to win a trip to Ibiza!

Technical Info…
Output voltage at 1000Hz, 5cm/sec: 10 mV
Channel balance at 1kHz: 1.5 db
Channel separation at 1kHz: 20 db
Channel separation at 15Khz: 15db
Frequency range at -3db: 20-18.000 Hz
Frequency response: 20-18.000 Hz +3/-2db
FIM distortion at recommended tracking force DIN 45.542: < 1%
Tracking ability at 315Hz at recommended tracking force: 120 μm
Compliance, dynamic, lateral: 11 μm/mN
Stylus type: Spherical
Stylus tip radius: R 18 μm
Tracking force range: 4,0 g (40mN)
Internal impedance, DC resistance: 1680 Ohm
Internal inductance: 920 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge color (body/stylus): Black/Silver
Cartridge weight (Concorde/OM): 18,5 g / 5 g
Replacement stylus unit: Ortofon-Serato S-120

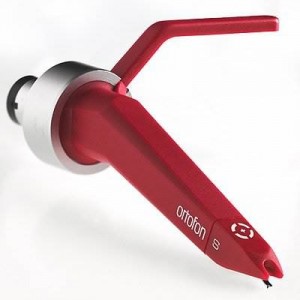

Concorde Digitrack (The Cartridge for the Next Generation)

The newest cartridge from Ortofon, the DigiTrack responds to the next generation of turntable DJs who make extensive use of timecoded vinyl applications, such as Serato (TM) and FinalScratch (TM). With DigiTrack’s low wear design and tailored frequency response increase the lifespan of timecoded vinyl records, and provides high quality sound reproduction for playing conventional vinyl records as well.

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

It picks up the signals from the analog records used for Traktor or Serato system, and maintains the best power output for the system. It is equipped with the most durable stylus among the Concorde series and performs for a long period of time without interruption. It also performs superbly on regular records. It is great for any DJ.
Output power: 8mV / Channel separation: 22dB @ 1k Hz / Frequency range: 20Hz – 20,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 4g / Weight: 18.5g

Ortofon Concorde DJ Kentaro Gold Edition – Twin Dj Cartridge

Ortofon DJ KENTARO CUSTOM cartridges by Kentro, a DMC World Champion DJ and artist on the legendary Ninja Tune record label, is known throughout the world for his highly technical and skilled DJ abilities.

These Concorde-style cartridges have a spherical stylus type and provide the absolute best in sound quality and tracking ability for amazing performance – both scratching and mixing.

The Kentaro Custom cartidges are all black with gold printing, including black anodized fittings.

These stylish Concordes come in unique clear flight case and will be the end-all DJs wanting to add a one-of-a-kind flair to their arsenal of equipment.

Specs:

Output voltage at 1000Hz, 5cm/sec. = 8 mV

Frequency range at- 3dB = 20-20.000Hz

Tracking ability at 315Hz at recommended tracking force = 90um

Stylus type = spherical

Tracking force, recommended = 3,0 g(30mN)

Recommended load resistance = 47kOhm

Recommended load capacitance = 200-600 pF

All configuration are customized and supervized bj Dj Kentaro.

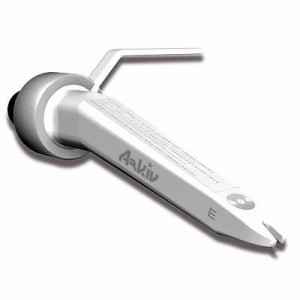

Concorde Arkiv

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

Before a DJ to play the PC system, it became imperative to digitize the analog signals. This cartridge is specially developed for digitizing the compressed analog signals. It is the best tuned for digitizing and meets the need of any DJ.
Power output: 6mV / Channel separation: 23dB @ 1k Hz / Frequency range: 20Hz – 20,000Hz Optimal impedance: 47 ohm / Stylus: elliptical / Stylus pressure: 3g / Weight: 18.5g
