Missill Target Slipmat

Chinese Dragon Slipmat

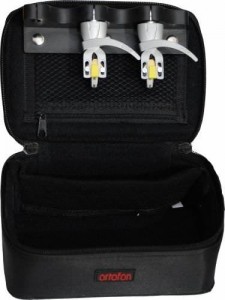

Cartridge case for 3 cartridges

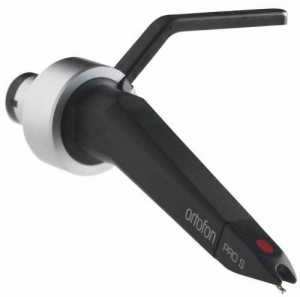

Concorde Pro S (Basic Model)

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

This reproduces wide rage of frequency at a low power output. It delivers a flatter sound when the power output is suppressed depend on the sound system and type of music.
Output power: 5mV / Channel separation: 23dB @ 1k Hz / Frequency range: 20Hz – 18,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 4g / Weight: 18.5g

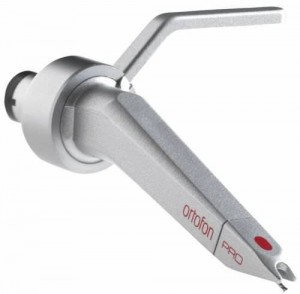

Concorde Pro (Simple but delivers dynamic Sound)

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

This cartridge equipped with a round stylus reproduces wide range of frequency in a flatter but rich sound quality even at a low power output.
Output power: 5mV / Channel separation: 23dB @ 1k Hz / Frequency range: 20Hz – 18,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 4g / Weight: 18.5g

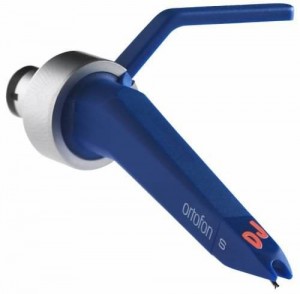

Concorde DJ S
The Ortofon DJ series has been known to many as the “jack of all trades”, with improved tracking, alongside of accurate sound reproduction. Featuring a low wear stylus design, the DJ provides excellent groove handling, even with less weight applied. The Ortofon DJ series of cartridges are great for any style of music, and has been a favored choice of DJs around the world.

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

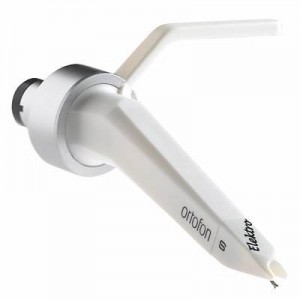

Concorde Electro

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

Emphasis on the low middle frequency with powerful sound
Emphasis on low middle range sound that is essential in dance music. This delivers razor sharp clean cut sound with bouncing effect.
Output power: 5mV / Channel separation: 25dB @ 1k Hz / Frequency range: 20Hz – 20,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 4g / Weight: 18.5g

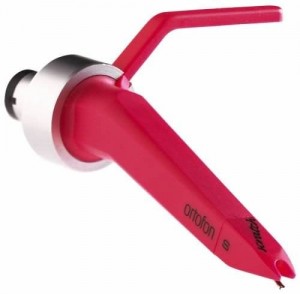

Ortofon Concorde Scratch

For DJs that require increased tracking ability, the Scratch is up to the task. Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces.

With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

TECHNICAL DATA

* Output voltage at 1000 Hz: 5cm/sec. ; 7 mV
* Channel balance at 1 kHz: 1,5 dB
* Channel separation at 1 kHz: 25 dB
* Channel separation at 15 kHz: 15 dB
* Frequency range at – 3dB: 20-20.000 Hz
* Frequency response: 20-15.000 Hz + 3 / – 2 dB
* FIM distortion at recommended tracking force, DIN 45.542: < 1 %
* Tracking ability at 315Hz at recommended tracking force: 80 µm
* Compliance, dynamic, lateral: 6 µm / mN
* Stylus type: Spherical
* Stylus tip radius: R 18 µm
* Equivalent stylus tip mass: 0,6 mg
* Tracking force range: 3,0-5,0 g (30-50 mN)
* Tracking force, recommended: 4,0 g (40 mN)
* Tracking angle: 20°
* Internal impedance, DC resistance: 750 Ohm
* Internal inductance: 450 mH
* Recommended load resistance: 47 kOhm
* Recommended load capacitance: 200-600 pF
* Cartridge colour, body/stylus: Neon red / Neon red
* Cartridge weight: 18,5 g
* Replacement stylus unit: Scratch

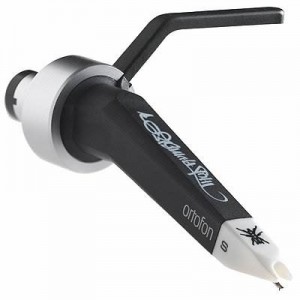

Concorde Qbert

- Concorde Twin (two Cartridge)
- Concorde Set (Cartridge + Extra Stylus)
- Concorde (Single)
- Stylus

Development Supervised by DJ Q-Bert for the Power and Drability With the cooperation of the king of the Scratch DJ, Qbert, Ortofon A/S of Denmark succeeded in the development of the cartridges that can jump the scratch and back-cueing. It has the greatest power output, “the frightening 11mV” among DJ and MM cartridge series. Compared with Line it surely delivers the low Phono output signals. “The frightening output” puts out the superpower sound.
Output power: 11mV / Channel separation: 22dB @ 1k Hz / Frequency range: 20Hz – 20,000Hz Optimal impedance: 47 ohm / Stylus: cone / Stylus pressure: 3g / Weight: 18.5g
