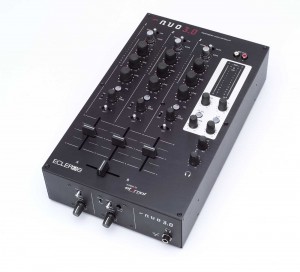

The NUO 3.0 is a 3 channel analogue mixer addressed to the professional DJ of any kind, in despite of the music style.

It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest sound performance.

The NUO 3.0 is tailored to any kind of DJ and music style thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, professional FX loop with Send and Return control in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ. Whatever the music style you play, the NUO 3.0 will please all your needs.

Its superb sound quality and robust format, plus balanced XLR Master output and Booth output for monitoring make it also a perfect mixer for small installations.

_ 3 mixing channels
_ 3 PHONO inputs
_ 3 LINE inputs
_ 1 balanced XLR Microphone input
_ Master output XLR and RCA
_ Booth output RCA
_ VU Meter per channel
_ 3 band full cut EQ
_ Extra large ergonomic EQ knobs
_ FX Send control per channel
_ FX Pre/Post fader selector
_ Master FX Return and FX PFL control
_ Fully assignable crossfader
_ 60mm long life VCA faders
_ 45mm long life VCA crossfader
_ Fader and crossfader shape adjustment
_ Crossfader Reverse and Cut-In
_ Crossfader suitable for ETERNAL

ECLER manufactures its equipment in Barcelona (Spain) since 1965 in partnership with international leading DJs and through a very strict in-house quality control. With over 40 years of experience in the design, engineering and production of professional audio, ECLER is still today the leading European mixer manufacturer.

SoundKontrols is an Authorized Dealer for all Ecler DJ Products.

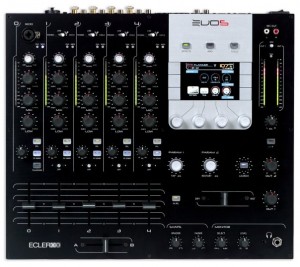

The Evo5 is the latest development by ELCER,a legendary European professional audio manufacturer with a background of 42 years designing and producing top quality professaional audio products in Barcelona.
The EVO5 allows professional DJs to think forward and integrate software in their set up thanks to its top quality 24bit/96kHz internal sound card. This top of the range sound card features 12 mono input channels (6 stereo inputs CH1, CH2, CH3, CH4, MIX and PFL) and 12 mono output channels (6 stereo outputs CH1, CH2, CH3, CH4, MIX and CH0). Stereo outputs can be used for instance to route Phono or Line inputs to a computer for effects processing with your favourite software or to record your set in your computer. This compact sound card is powered via FireWire, a professional standard superior to USB, and it transfers all audio channels and MIDI information through only one FireWire cable. This powerful tool turns the EVO5 into the perfect console for music production and live performances.

The EVO5 features a powerful effects processor at 24bit/96kHz that can be fully edited. It features 8 basic effects: Delay/Echo, Filter, Flanger, Phaser, Transformer, Panoramic, Pitch and Reverb, and all effects parameters can be edited. Moreover the EVO5 offers the new and revolutionary possibility to chain 2 basic effects and so create complex customized effects. A total of 64 different complex effects can be created, named and saved. A precise BPM counter with reliability indication synchronises the effects. Another new feature is the synchronisation by pattern that allows controlling the effects in an extremely creative way. There are also 2 dedicated Microphone effects: Noise Gate and Compressor (also editable). Personal effects presets can be imported and exported using a computer via FireWire with the EVO5 external software (included).

The 69 controls of the EVO5 are MIDI enabled and completely mappable and editable. Moreover the EVO5 features a dedicated MIDI control section with 10 push switches and 4 rotary encoders around a full colour screen, which turns into the perfect display for labelling the controls functions. There are 64 different layouts including different control presets for DJ software such as Traktor and Live. Presets can be imported and exported using a computer via FireWire with the EVO5 external software (included). There is also a MIDI Clock output synchronised to the BPM counter. All MIDI information is transferred with ultra low latency thanks to the EVO5 FireWire and MIDI DIN5 interface.

The EVO5 includes a 3,5 inch screen to enhance your creativity and gain total control of your mixer parameters. Thanks to this high quality colour resolution screen, users can easily display labels for MIDI controls, edit sound effects and mixer parameters. The screen also serves as a display for the BPM counter, the MIDI monitor, the FireWire connection and much more.

The EVO5 software can be updated and the mixer features can be upgraded, for instance storing new sound effects. Updates and upgrades are easily done using a computer and the mixer is fully compatible with Macintosh computers. Most EVO5 parameters can be easily adjusted through the screen. Users can choose between Kill and Baxandall EQ styles. EQ gains and frequencies are fully editable and channel EQ can be also bypassed. Microphone Talkover and dedicated effects are also editable. On the output, users can adjust sensibility of OUT1 and OUT2 to 0dB, +3dB or +6dB, as well as assigning the REC signal to MIX or PFL. All fader shapes can be adjusted, including the crossfader, the channel faders and the effects Dry/Wet crossfader. The BPM counter can be assigned to the internal source or to the MIDI Clock, and can work on different ranges from 60 to 220 BPM. The FireWire sound card input and output levels can also be adjusted from 0dB to +18dB. Different user presets protected with password can be saved, as well as imported and exported using a computer with the external software (included).

The EVO5 features a limiter on output 1 or 2 for a totally safe performance. The limiter is only accessible with a special password in order to avoid that a non authorised user modifies it. The limiter can be assigned to OUT1 or OUT2, or it can be deactivated. The limit threshold goes from -20dB to +6dB. Club owners and sound engineers can feel safe thanks to this unique feature that will prevent the sound system from any damage.

The EVO5 is the perfact tool for today’s DJ’s and producers thanks to it’s unidue combintation of an state of the art internal 12 channel fireWire sound cards, the highest digital sound quality at 24bit/96kHz, flexible MIDI control and the most powerful built-in editable efftects processor available in the marketplace.

Digital Audio
24 bit stereo A/D and D/A converters
96kHz sampling rate

2 Effects Processors
18 advanced sound effects synchronized with BPM
Automatic/manual BPM counter on each processor
LCD screen on each processor
Dry/Wet crossfader and 3 parameter adjustment
2 independent processors chainable or assignable to
different channels
Send and return control to external effects processors
2 Loop Samplers
2 bank loop samples
1/8, 1/4, 1/2, 1/1, 2/1, 4/1 or 8/1 beats (automatic beat detection)
MIDI Control
29 assignable MIDI controls
Dedicated MIDI panel with 4 rotary and push encoders
MIDI Clock
Output Limiter
Output limiter for a safe performance
Protected with password

The Ecler HAK380 mixer is a professional battle mixer featuring the award winning ETERNAL magnetic crossfader and the smart microprocessor driven SCRATCH CUE mode.

Designed and manufactured with expert consultation from DMC World champions Noisy Stylus, the Ecler HAK380 mixer also endorses other DMC and ITF champions all over the world like Jekey, Silk Kuts or Fly to name a few.

ETERNAL magnetic crossfader
The Ecler HAK380 mixer equippes the second generation of ETERNAL contactless technology magnetic crossfader. The ETERNAL has been improved for an even better sound and performance.

The ETERNAL crossfader has a warranty of 5 years and was awarded by the prestigious DJ Magazine back in 2003.

Smart SCRATCH CUE
A revolutionary feature allowing DJs to cue their scratch on the headphones before playing it live. Safe feature assisted by LEDs and smart microprocessor preventing accidental release.

Total control of your cuts
The second generation of the ETERNAL crossfader is driven by a high end microprocessor and features plenty of controls to adapt your cuts to any situation.

The Ecler HAK380 mixer features double crossfader shape adjustment so both sides controls are independent. Shapes range smoothly from soft to sharp contours.

Moreover, the Ecler HAK380 mixer features double crossfader cut-in adjustment so both sides controls are independent too. This way we can fully control the exact point where our crossfader will physically start cutting.

Advanced fader shapes
The fader shape control has been also improved and the Ecler HAK380 mixer features total control of countour. Thus users can fully adjust the shape and cut up or down the fader.

Faders standard has been even improved in terms of sound quality and performance.

FX loop with CUE and DRY/WET
The equipped with a master effects loop including cue FX return signal and DRY/WET launch crossfader.

High end sound quality
The Ecler HAK380 mixer sets a new battle mixer standard with improved faders and circuitry. It simply features today’s best analog components available in the market. Last but not least, it employs an oversized internal power supply providing the best sound dynamics and rating the most excellent signal/noise ratio.

The Ecler HAK360 mixer is a professional battle mixer featuring the award winning ETERNAL magnetic crossfader with 5-year warranty.

Designed and manufactured with expert consultation from DMC and ITF champions all over the world, the Ecler HAK360 mixer has endorsed top performers like Jekey, Noisy Stylus, Silk Kuts, Goldfingers, Ritchie Ruftone, Woody, Rocky Rock, Jazz-T, Presteez, Peril, Vinyl Richie, Mr Brown, Mana or Fly to name a few.

ETERNAL magnetic crossfader
The Ecler HAK360 mixer equippes the second generation of ETERNAL contactless technology magnetic crossfader. The ETERNAL has been improved for an even better sound and performance.

The ETERNAL crossfader has a warranty of 5 years and was awarded by the prestigious DJ Magazine back in 2003.

High end sound quality
The Ecler HAK360 mixer simply features today’s best analog components available in the market. Last but not least, it employs an oversized internal power supply providing the best sound dynamics and rating the most excellent signal/noise ratio.

Professional shape adjustments
The curves of the crossfader and faders are adjustable through a potentiometer with a very wide range of curves from the fastest scratch to the smoothest contour. A HAMSTER switch allows reversing the crossfade and fading function.

CUT switches
The Ecler HAK360 mixer features brand new “fat designed” CUT switches, extremely smooth and durable. The switches are multidirectional, offering 8 adjustments accessible by removing the front panel.

Advanced monitoring system
For a very complete sound mastering, the Ecler HAK360 mixer allows the performer to monitor both PGM (Master signal) and/or PFL (Pre-fader signal) through the VU-METER as well as a powerful headphone system.

For pre-fader listening, a MONITOR-MIX crossfader is active when the PGM/PFL switch selector is in PFL position; then direct crossfading between PFL input 1 and PFL input 2 is possible. On PGM position the mixer can be fully performed through the headphones. A 0dB LED nearby the MASTER1 level knob allows to easily control the Output level.

Effect send switches
The switches allows the DJ to send the PGM1 or/and PGM2 post fader stereo signal to effect external devices through the EFF output. The already processed signal is returned to the main bus through the MIX input.

Balance
One Balance short slider per channel allows the DJ to execute “Stereo-Pan-Scratches” in a fast and easy fading manipulation.

Powerful 3 band EQ
The HAK 320 features a High/Mid/Low Band EQ that allows the DJ to boost tones up to +10 dB and CUT them down to -25/-30 dB! The EQ is horizontally displayed for an easier and faster manipulation.

Master Out 1 & 2 and REC output
Two completely independent high-powered main program outputs. OUT 1 (0dBV), controlled through Master 1, is electronically balanced and with XLR3 connectors. OUT 2, adjusted at a nominal +6dB level, is controlled through Master 2, is non-balanced and with RCA-cinch connectors for monitoring or session output, and finally a recording REC output with RCA.

Session
The Ecler HAK360 mixer features a SESSION Input that allows the DJ to organize a Mixing Session with others in a daisy chain formation. The SESSION potentiometer allows adjusting the level of the foregoing DJ connected to the Ecler HAK360 mixer.

It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest performance.

The NUO 4.0 is tailored to any kind of DJ and music style thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, professional FX loop with Send and Return control in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ. Whatever the music style you play, the NUO 4.0 will please all your needs.

Its superb sound quality and robust format, plus two balanced XLR microphone inputs and two balanced XLR outputs for Master and Booth make it also a perfect mixer for installations.

_ 4 mixing channels
_ 4 Phono and 4 Line inputs
_ 2 balanced XLR Microphone inputs
_ Master output XLR and RCA
_ Booth output RCA
_ VU Meter per channel
_ 3 band full cut EQ
_ Extra large ergonomic EQ knobs
_ FX Send control per channel
_ FX Pre/Post fader selector
_ Master FX Send, FX Return and FX PFL control
_ Fully assignable crossfader
_ 60mm long life VCA faders
_ 45mm long life VCA crossfader
_ Fader and crossfader shape adjustment
_ Crossfader Reverse and Cut-In
_ Crossfader suitable for ETERNAL

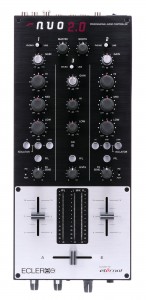

The NUO 2.0 is a 2 channel analogue mixer addressed to the professional DJ of any kind, in despite of the music style.

It features the professional characteristics that made its predecessors acclaimed worldwide, and it equips the best analogue components available in the market place in order to obtain the highest sound performance.

Whether you play house, techno or hip hop, perform smoothly or as a scratch DJ, the NUO 2.0 will please all your needs thanks to its versatility and plenty of features, such as the precise and ergonomic full cut EQ, FX Send control per channel in pre or post fader mode, faders curve adjustments and suitability for the awarded magnetic ETERNAL crossfader for the professional scratch DJ.

Its superb sound quality and robust format, plus balanced XLR Master output and Booth output for monitoring make it also a perfect mixer for small installations.

_ 2 mixing channels
_ 1 MICRO/LINE channel
_ 2 PHONO inputs
_ 3 LINE inputs
_ Master output XLR and RCA
_ Booth output RCA
_ 3 band full cut EQ
_ Extra large ergonomic EQ knobs
_ 3 band EQ kill switches
_ FX Send control per channel
_ FX Pre/Post fader selector
_ 45mm long life VCA faders
_ 45mm long life VCA crossfader
_ Fader and crossfader shape adjustment
_ Crossfader Reverse and Cut-In
_ Crossfader suitable for ETERNAL
